JTAG / IEEE1149.1 Boundary Scan

As experts in IEEE 1149.x standards and related tools, we deliver solutions that simplify testing processes and improve fault detection across complex PCBAs and integrated circuits.

Our company started around JTAG and Boundary Scan technology. By teaching JTAG basics, partnering with Goepel Electronic and delivering dozens of BS projects we paved a road to the deep knowledge of JTAG's lowest-level details. Nowadays, our expertise is exemplified by our flagship technologies, Quick Instruments, ChipVORX and QIFT, cutting-edge solutions built on the JTAG interface to provide efficient, high-accuracy testing capabilities for complex electronic systems.

Quick Instruments, ChipVORX & QIFT

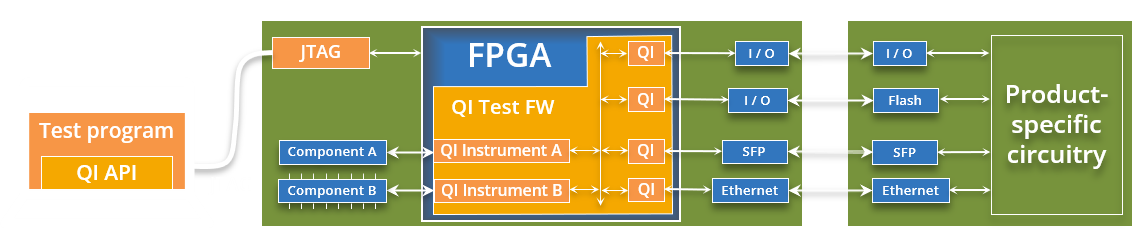

JTAG as a communication bus

Deep understanding of the JTAG protocol has enabled us to develop technology that is finely tuned for optimal performance. At Quick Instruments, the JTAG bus is used for uploading FPGA firmware, facilitating communication with embedded instruments and retrieving results back to the main test station. With the complexity of testing efficiently handled within the FPGA firmware, the JTAG bus is the perfect match for our technical needs.

Learn More

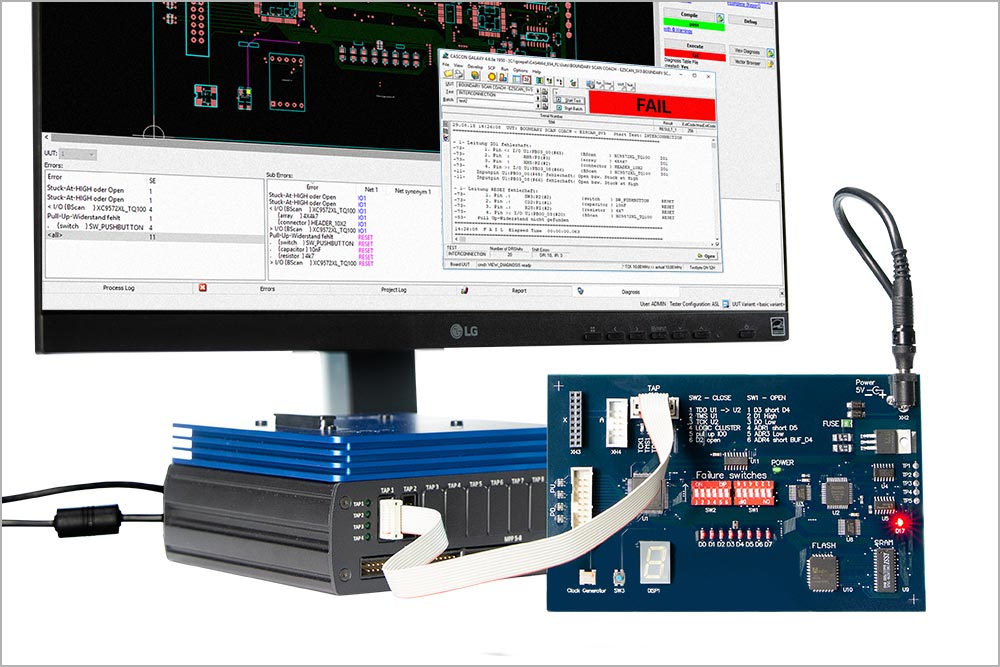

Boundary Scan Test Projects

GÖPEL electronic SYSTEM CASCON

As a long-term technological and GATE partner of GOEPEL electronic, we are offering Boundary Scan test project development services tailored to meet the demands of modern electronic testing. With over 15 years of experience leveraging Goepel's state-of-the-art boundary scan tools and technologies, we provide robust and efficient solutions for testing the most complex PCBAs and integrated circuits.
Contact us

BS Training Packages

PRICE

TABLE

SCAN TEST
STARTER
CASCON
BASIC
SCAN TEST +
CASCON
CASCON +
PROJECT
FULL
PACK

1500€

2500€

3750€

8900€

9900€

Day A
far fa-check-square
far fa-minus-square
far fa-check-square
far fa-minus-square
far fa-check-square
Day B
far fa-minus-square
far fa-check-square
far fa-check-square
far fa-check-square
far fa-check-square
Day C
far fa-minus-square
far fa-check-square
far fa-check-square
far fa-check-square
far fa-check-square
Day D
far fa-minus-square
far fa-minus-square
far fa-minus-square
far fa-check-square
far fa-check-square

* Base pricing for up to 4 trainees. Every extra trainee +10% towards the base pricing

Request more information

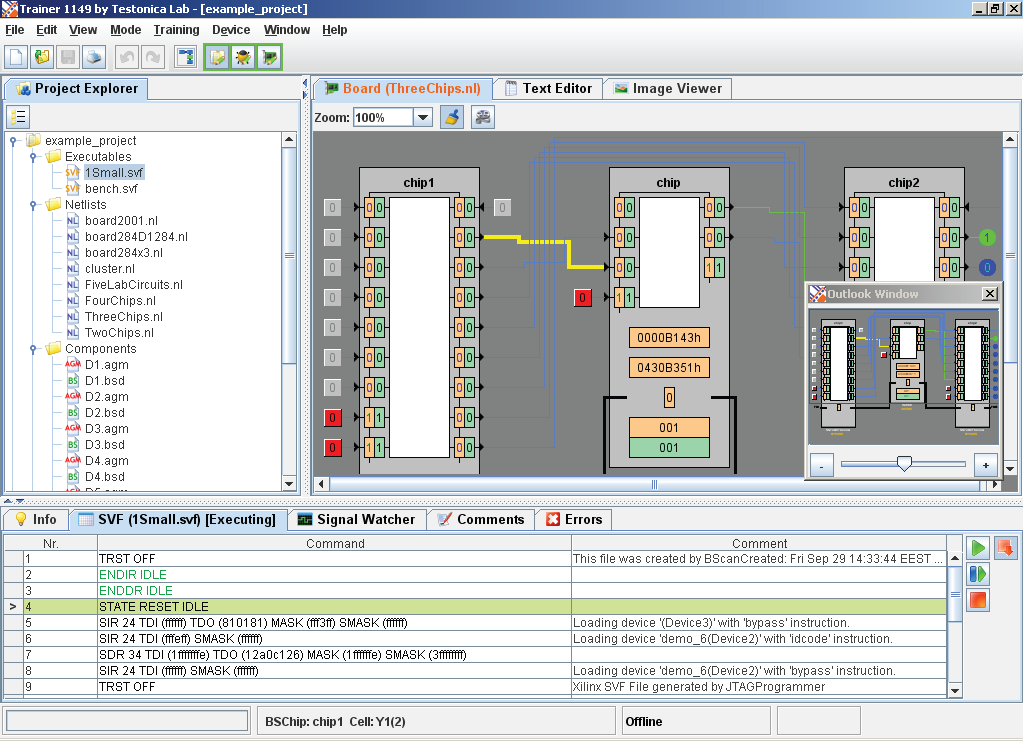

Trainer 1149

A free tool for learning boundary scan test principles and JTAG operations.

Trainer 1149 software allows the user to dive deep into the IEEE Std. 1149.1 operation principles through detailed visualization, study the boundary scan test basics, carry out own experiments by injecting faults and performing fault diagnostics. The software tool comes with a built-in example project while the user can create and add his own models of boards, chips, cluster logic, etc.
Learn More

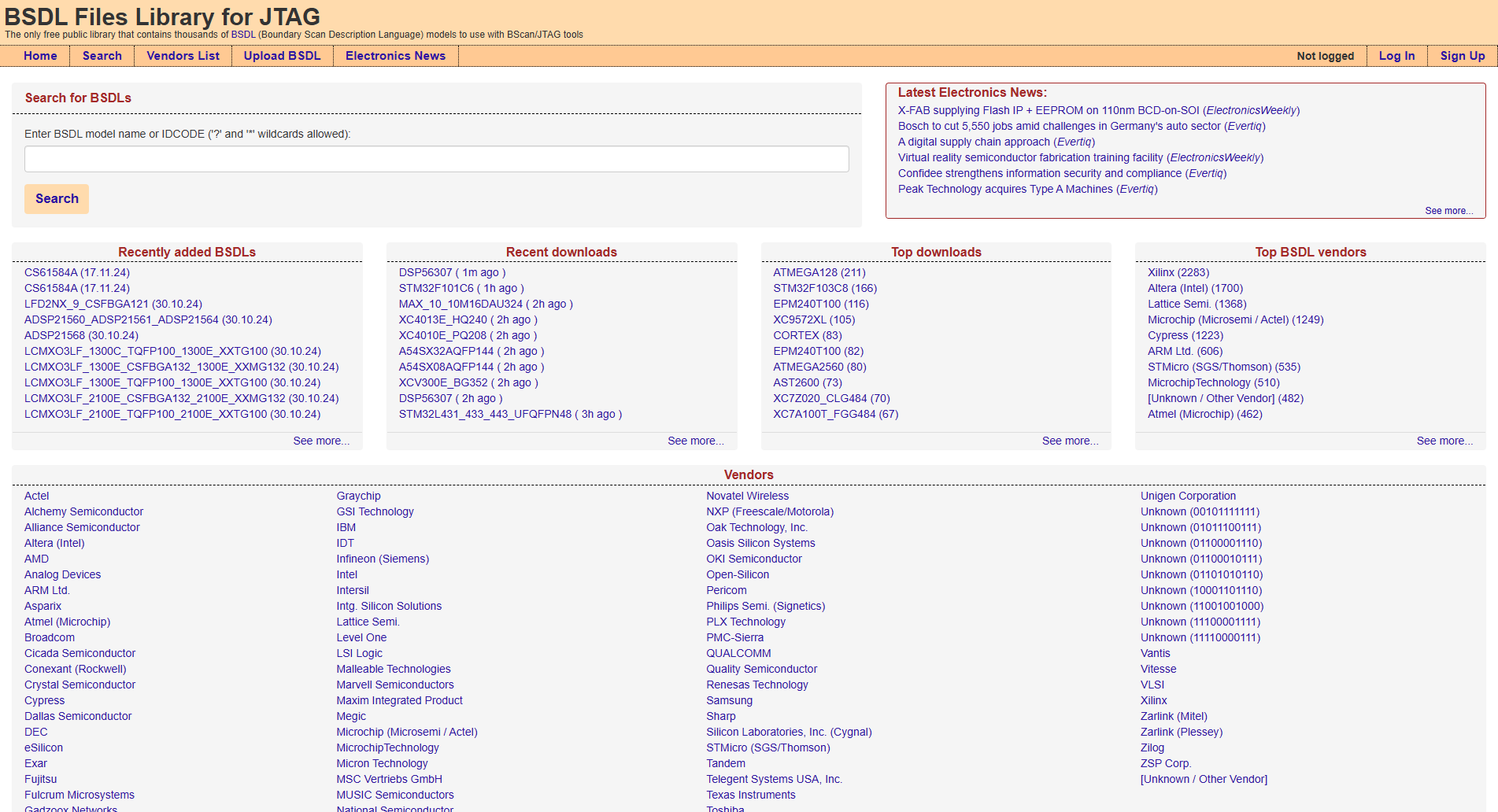

BSDL.info

Free public library of BSDL models for many devices.

BSDL.info is a free public collection of Boundary Scan Description Language (BSDL) files for many different devices. Boundary Scan (JTAG) tools typically use BSDL descriptions to perform BS testing of PCBs or enable JTAG-based access to built-in chip DFT structures. The content of this site is constantly updated by the automated BSDL web-search system, new BSDL can be also uploaded by the site's users. Currently, the library contains more than 9000 different BSDL files.

Visit BSDL.info
