Pricing and licensing
Price list is per project / board
Prerequisites:
QI PC enable license is required for every PC/test station that runs Quick Instruments (purchased once). This license supports all purchased instruments of the target customer.
Pricing rules:
- Every instrument has a price tag (bound to the FPGA / IC part name).
- The instruments are bound to the project (PO#) and particular customer (ID#).
- All purchased instruments can be executed on any enabled customer’s PC / test station.
- When an end-user requires an additional place to run Quick Instruments, only a new PC enable license should be purchased.
Example: Projects A / B
Project A | Project B | ||
Test station #1 | Test station #2 | ||
QI PC enable license | 2450 | 2450 | - |
Frequency Counter | 390 | - | 390 |
Memory Interconnect Tester | 890 | - | - |
Ethernet Stress Tester | 990 | - | - |
Bit Error Rate Tester | 3680 | - | - |
SPI Flash Programmer | 1590 | - | 1590 |
Total price (EUR): | 9990 | 2450 | 1980 |
To test a board, a set of Instruments targeting the board's infrastructure is required. The instruments are compiled for the particular board according to the board's schematic (see Workflow). The compiled set of instruments is board-specific and cannot be used on another board. For the next board / project, a new set of instruments should be purchased.
In this example, to test board A using 5 different instruments the initial investment would be 9500 EUR. To be able to run the tests on two test stations, an additional PC enable license should be purchased.
For the separate project B, only a new set of required instruments should be added (it is assumed, that project B would be tested on already enabled Test Station #1 or #2).
In this example, to test board A using 5 different instruments the initial investment would be 9500 EUR. To be able to run the tests on two test stations, an additional PC enable license should be purchased.
For the separate project B, only a new set of required instruments should be added (it is assumed, that project B would be tested on already enabled Test Station #1 or #2).

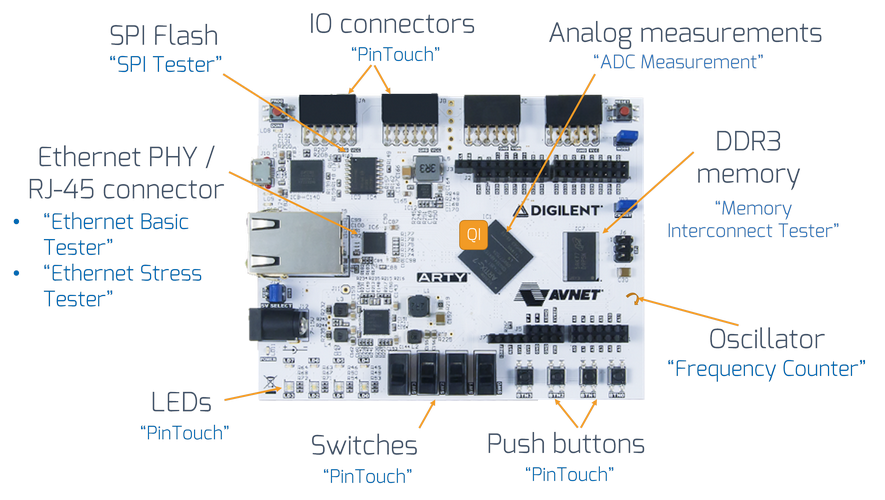

Example: Digilent Arty board
Lightweight package | Full test solution | |
Frequency Counter | 390 | 390 |
Memory Interconnect Tester | 890 | 890 |
DDR Margining Tester (Xilinx 7 Series) | - | 2490 |
Ethernet Basic Tester | 790 | 790 |
Ethernet Stress Tester | - | 990 |
ADC Measurement (Xilinx) | 490 | 490 |
SPI Tester | 390 | 390 |
SPI Flash Programmer | - | 1590 |
PinTouch | - | 1590 |
Total price (EUR): | 2950* | 9610* |
*price for existing customers, PC enable license is not included

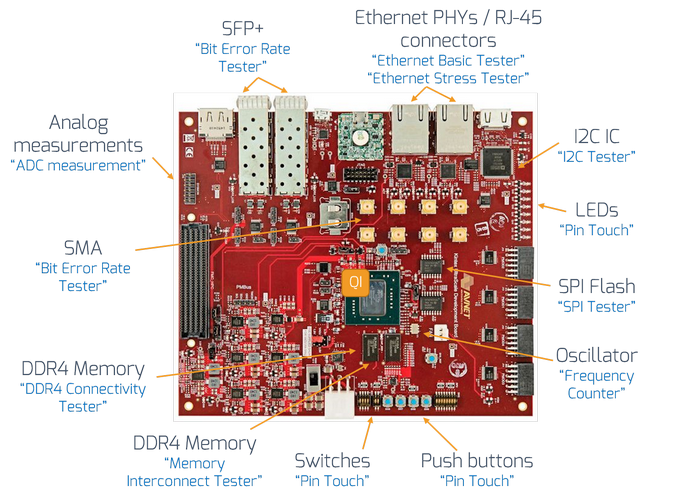

Example: AVNET KintexU dev. kit
Lightweight package | Full test solution | |
Frequency Counter | 390 | 390 |
DDR4 Connectivity Tester | 490 | - |
Memory Interconnect Tester | - | 890 |
BER Tester (BERT) | 2190 | 2190 |
Eye BERT with Mask | - | 1490 |
Ethernet Basic Tester | 790 | 790 |
Ethernet Stress Tester | - | 990 |
I2C Tester | 390 | 390 |
ADC Measurement (Xilinx) | 490 | 490 |
SPI Tester | 390 | 390 |
SPI Flash Programmer | - | 1590 |
PinTouch | 1590 | 1590 |
Total price (EUR): | 6720* | 11190* |
*price for existing customers, PC enable license is not included
